Some space to write down what I was thinking about when I designed or photographed something.

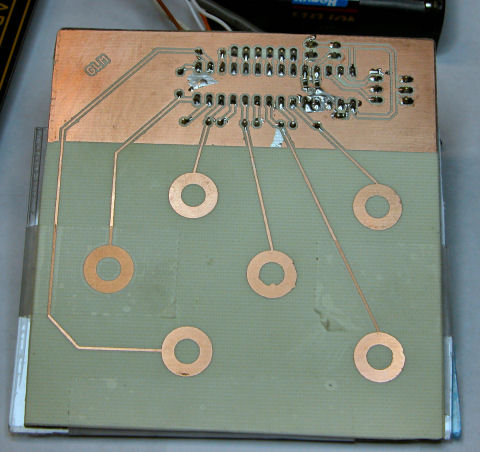

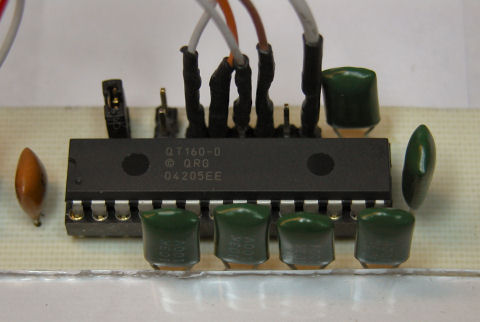

Presenting “6buttons”; a simple six button keypad based on the QProx QT160 charge transfer proximity sensor chip.
More details to come later, wanted to get some pictures and video online tonight.
simple schematic - i plan a “backpack” pcb which will provide some visual feedback, a clicking noise and translate the six outputs into an i2c bus [...]
Popularity: 49% [?]

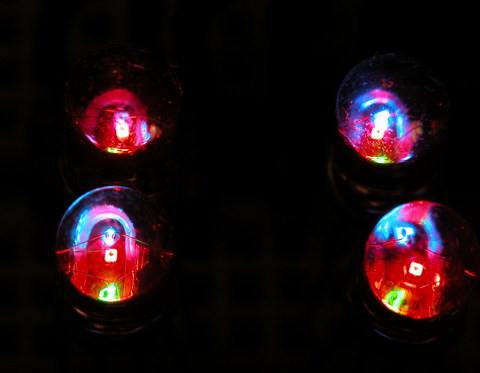

I found this digging around some old forgotten directories on my web server. It appears to be four dimly lit RGB leds.
Popularity: 27% [?]
Popularity: 27% [?]
The firmware for my LED Sign / Clock project is taking shape. I’ve worked out my initial wishlist of features, and put together a basic menu structure. I figured a menu is the easiest way to access a lot of options, while only relying on two buttons.
The basic menu consists of options for setting the [...]
Popularity: 38% [?]
